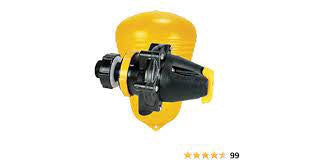

Megaflow Through Valve Jobe High Pressure (Mount under water)

Megaflow Float Valves are ideal for filling troughs, which are designed to have the valve mounted under the water on the side or on the bottom. Its diaphragm principle of operation allows the Megaflow to provide flows of up to 90 gallons per minute. The Megaflow is compact, robust, and manufactured from non-corroding materials. Jobe Megaflo Trough Valve J-MFV1" D 1" NPT

The valve is configured for underwater mounting only. The float is connected to the valve with a nylon cord; this operates a pilot valve. When the water level drops, the pilot valve is opened, and the main diaphragm valve is activated. Megaflow is a good choice where its high-flow, compact, robust, noncorrosive construction is beneficial.

Applications:  Maintaining water levels in • Animal drinking troughs • Water storage tanks

Features: • High flow • Compact robust construction • 20-60 mm (¾” - 2½”) water level differential (increases as water pressure increases) • Positive on/off operation • Lock off with cord lock • 0.3 - 10 bar (5 - 150 P.S.I.)     pressure rating • Inlet filter • Constructed from corrosion-resistant materials • Underwater installation helps avoid freezing • The valve is less prone to stock damage
